CBN 1300 Twin Wheel Head

Precision at High Speed

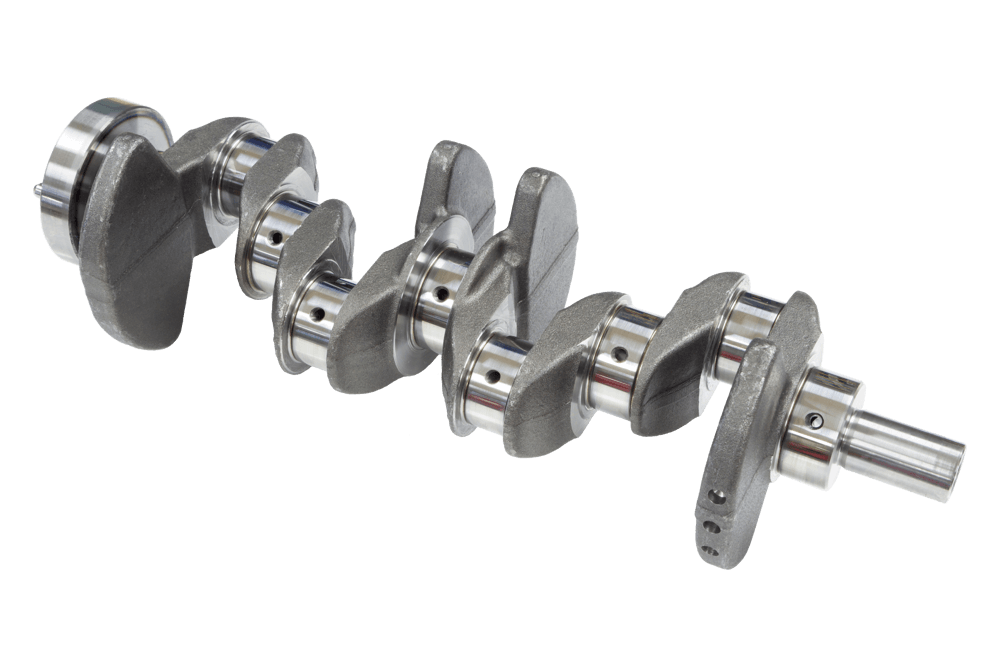

Designed for high-performance crankshaft journal grinding, the CBN 1300 Twin Wheel Head delivers unmatched precision and productivity. Its twin grinding heads and hydraulically actuated chuck ensure superior accuracy in size and geometry, even for the most demanding applications.

With wheel surface speeds of up to 80 m/sec and high-precision linear motion guideways, this machine sets new standards for speed, consistency, and repeatability—empowering your production to achieve more.

Place an enquiry   Product Brochure   Technical Information Note

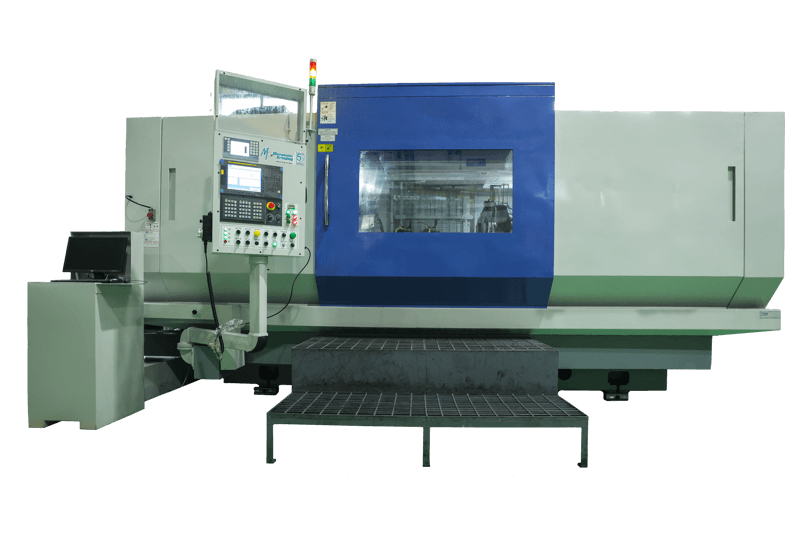

CBN 1300 Twin Wheel Head

Specifications of CBN 1300 Twin Wheel Head

Description U/M CBN 1300 Twin Wheel Head
Swing Over Table mm 500
Grinding Diameter mm Ø135
Grinding Length mm 1300
Wheel Head 1 Grinding Wheel Size (OD × Bore × Width) mm 650×160×50
Wheel Head 2 Grinding Wheel Size (OD × Bore × Width) mm 650×160×50
Wheel Peripheral Speed m/Sec 80

Note: All specifications and design subject to alteration without notice.
