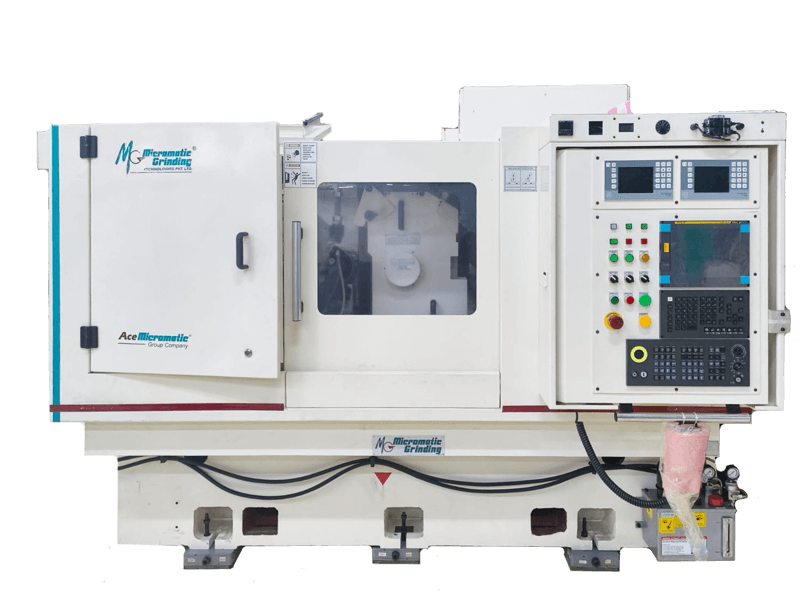

CNC Bearing Outer Diameter

Dedicated Grinding Solution for Bearing Industry.

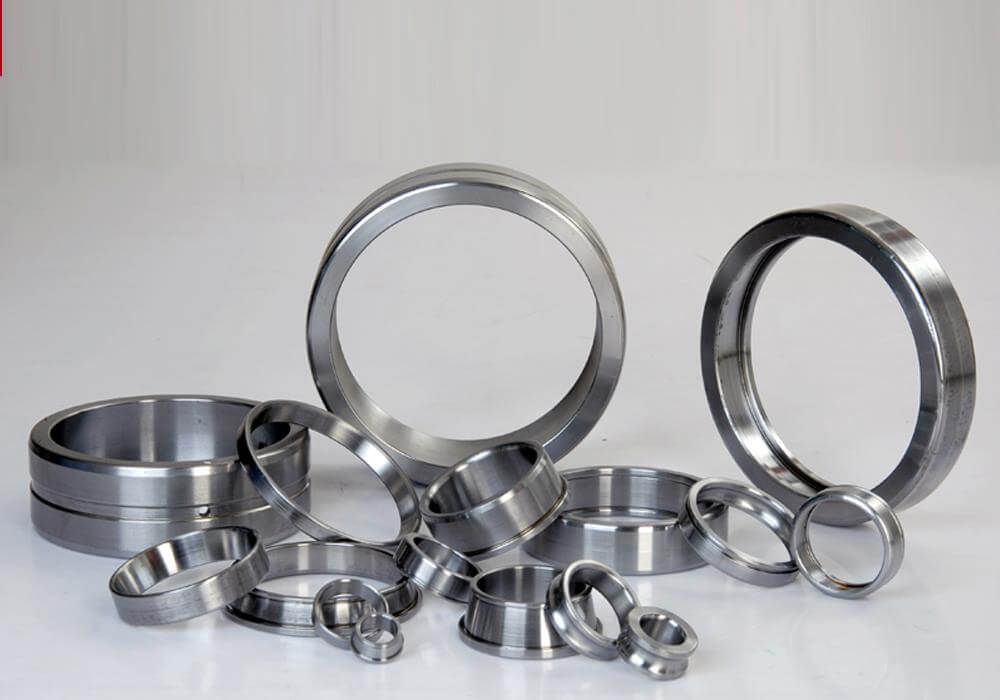

Machine suitable for grinding Outer Diameter and Inner Race of bearings. Show centerless fixture is used to achieve highest precision in size and geometry. Machine bed construction is from high grade cast iron & honeycomb type structure (for better damping and thermal stability). Machine is capable for high speed grinding up to 80 m/sec wheel surface speed. Axes move on High precision Linear motion guideways for precise positioning & repeatability.

Place an enquiry   Product Brochure   Technical Information Note
CNC Bearing Outer Diameter

Specifications of Bearing Outer Diameter

DESCRIPTION UNIT ORBIT 65
Max. workpiece outside diameter mm 75
Max. workpiece width mm 50
WHEEL SPINDLE
Peripheral (Surface) speed m/s 80
(X-AXIS)
Slide Stroke mm 125
Rapid feed rate mm/min 10,000
(W-Axis)
Dresser stroke mm 125
Rapid feed rate mm/min 1500
WORKHEAD
Spindle speed (infinitely variable) rpm 300-1500

Note: All specifications and design subject to alteration without notice.
