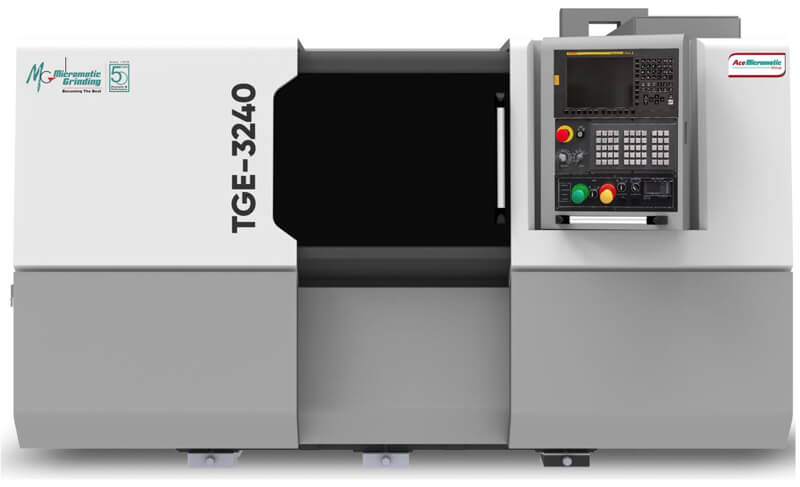

TGE 3240 – External Thread Grinder

CNC External Thread Grinder

External Thread Grinder with built-in spindle, Automatic swiveling A-axis, profile dressing with rotary disc dresser & C axis work head.

Highlights
  • Built in spindle with 3000 rpm
  • Max. Wheel Dia 400 mm
  • Max. Wheel head swivel ± 40 deg
  • Disc dresser
  • C axis WKH with 2 Arc sec. resolution
Place an enquiry   Product Brochure   Technical Information Note
TGE 3240 – External Thread Grinder

Specifications of TGE 3240

MACHINE SPECIFICATION
Description Unit TGE 3240
Centre Height mm 175
Admit between Centre mm 400
Thread diameter range mm Ø1–Ø200
Max. Thread Length mm 280
Maximum weight Between Centre/Chuck Kg 50/20
Pitch Range mm 0.2-150

Note: All specifications and design subject to alteration without notice.
