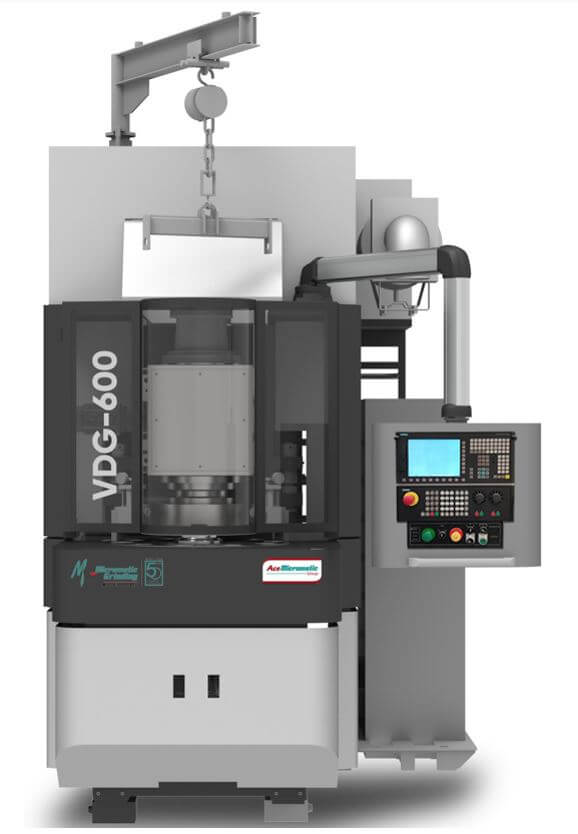

VDG 600 DOUBLE DISC GRINDER

Vertical Double Disc Grinder.

Automatic wheel positioning & dressing compensation with CNC system. Unique backlash eliminator system in wheel head. Both upper & lower grinding wheels will be dressed simultaneously.

Highlights
  • Hydraulic swing arm dresser
  • Wheel positioner for Grinding Wheel
  • Fast & Simple change over
  • Variable speed spindle drive
  • Backlash adjustment
  • Forged spindle
Place an enquiry   Product Brochure   Technical Information Note
VDG 600

Specifications of VDG 600

Description Unit Value
Max. workpiece OD mm 120
Max workpiece Thickness mm 40
Wheel Spindle Max RPM rpm 960
Spindle Power Kw 22
Grinding Wheel Dia mm 600
Job Carrier Power Kw 2.2
Carrier Speed rpm 1-10
Carrier Plate Diameter mm 850
Max Feed Rate m/min 0.2

Note: All specifications and design subject to alteration without notice.
